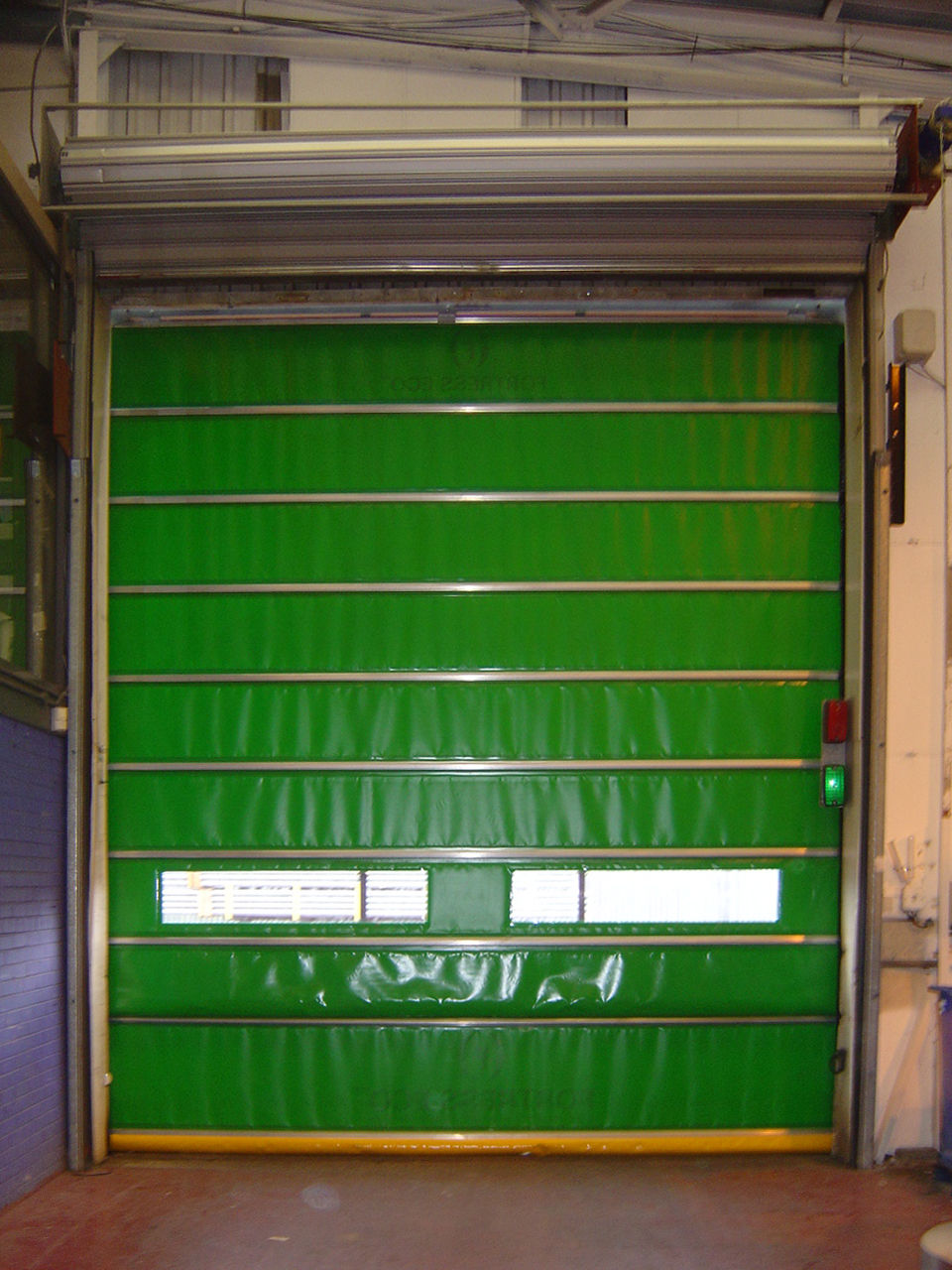

Vertical stacking fabric door. Opening/closing speed 0.75m/s. Openings up to 6500mm x 8000mm.The Door is designed to be robust but is not a security door in itself, it will however prevent unwanted pedestrian access. Minimum headroom for housing is 750mm, the door also requires a 200mm guide on each side of the access point and 350mm for the motor. The curtain is made from one continuous piece of 650mg/m2 PVC with a high gloss lacquered finish. Horizontal channels run across the curtain at 500mm centers into which a structural brace is slid to provide rigidity. An inter locking system is available combining the DB501 with a commercial or industrial steel shutter for maximum security.

Vertical rolling fabric door. Opening/closing speed 1.2m/s. Openings up to 4000mm x 4000mm.The door differs from the 501 in that the panels roll into a top box. Minimum headroom for housing is 450mm, the door also requires a 200mm guide on each side of the access point and 350mm for the motor. The curtain is made from one continuous piece of 650mg/m2 PVC with a high gloss lacquered finish. Horizontal channels run across the curtain at 500mm centers into which a structural brace is slid to provide rigidity. An inter locking system is available combining the DB501 with a commercial or industrial steel shutter for maximum security.

Speed doors are motorised PVC panel systems fitted to commercial and industrial entrance points. The doors are lightweight and feature a rapid action so as to maintain a thermal barrier between exterior and interior. Suitable for access points which experience a high level of vehicular and pedestrian traffic eg. factories, warehouses, airports etc. Speed doors can reduce heat loss from around an entrance by up to 80%. The ease and speed allow the shutter to be activated only when required and eliminate long term exposure to the elements. The doors are highly environmentally friendly and reduce energy costs due to reduced heating requirements. Speed doors can be fitted in addition to a commercial or industrial shutter door to create a high level of security and an efficient, sustainable access point. The fabric door is constructed in polyester and is available in over 30 different colours. Company logos and personalisation can also be Incorporated in addition to transparent vision panels to allow a visual link when the door is down. Speed doors can be fitted to the interior or exterior of an entrance area. Speed doors are significantly quieter than general metallic shutter systems. A series of horizontal structural beams give the curtain rigidity against wind loads and other interference.

All speed doors are fitted with a self checking edge and a photocell cut off system.

Speed doors are available with a range of control options, including:

-Push button

-Radar

-Pass beam

-Swipe card

Speed Door Products
